How to Draw a New Sketch

Notes...
Start in the Upper Right Corner.
Click A: to begin drawing or to edit a section.
Click to the right of A: to describe the section.
Drag the solid red square to the start position.
Drag an open square to change a length.
Click Del to delete the last line or to open the section.
Angles must be OFF to draw straight lines.
Draw clockwise to keep the dimensions inside.
Save time by clicking Close for the last line.
Save Frequently - Abort can be used to go back to the last save.
Remember to click Update to make changes.

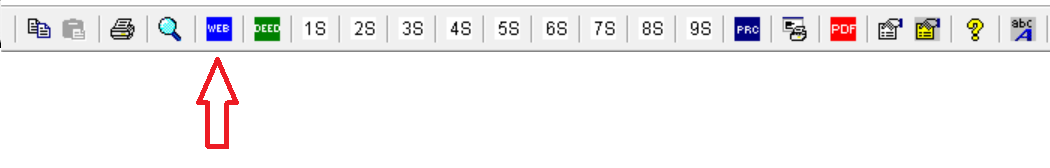

Click Web

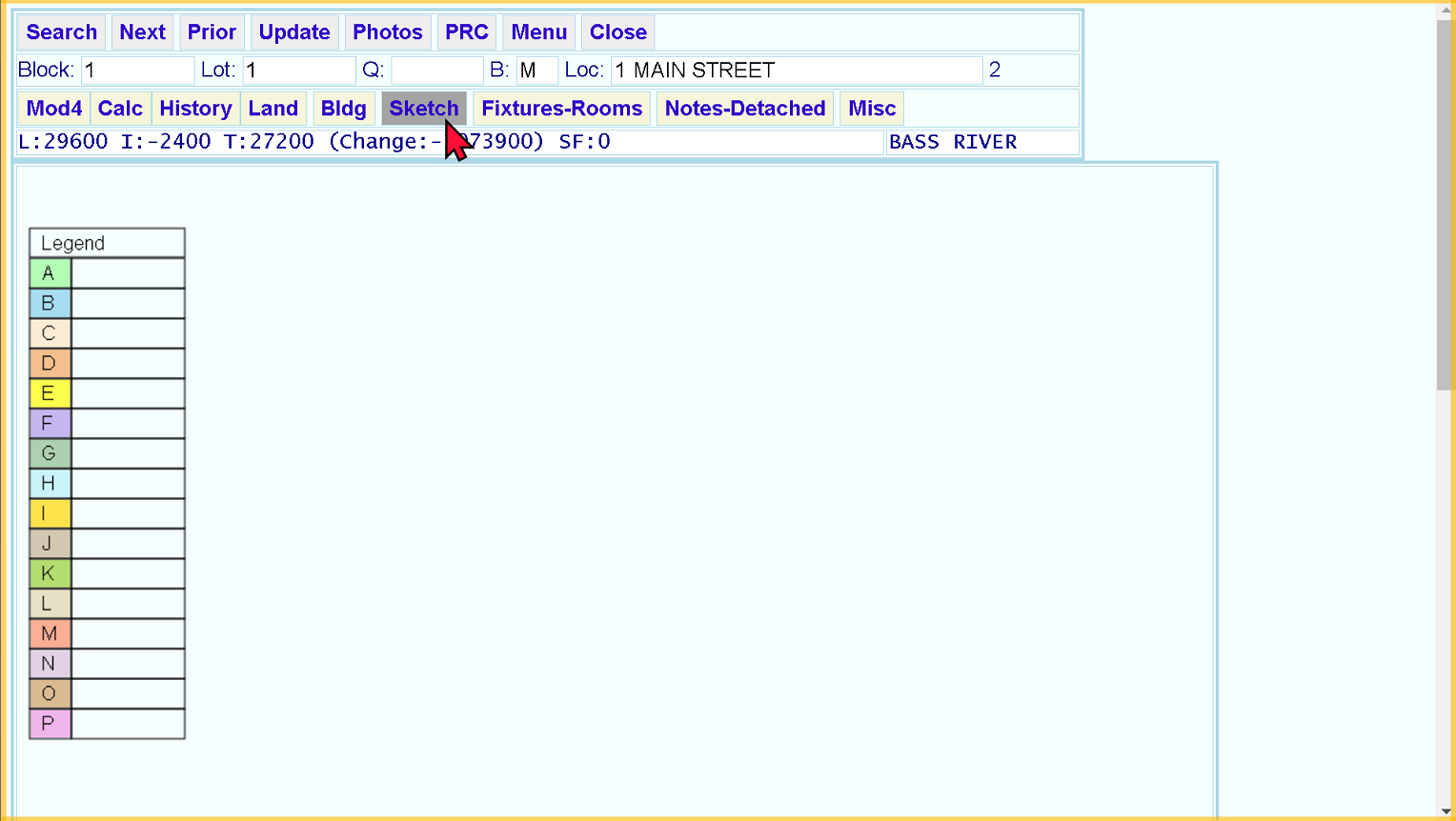

Click Sketch

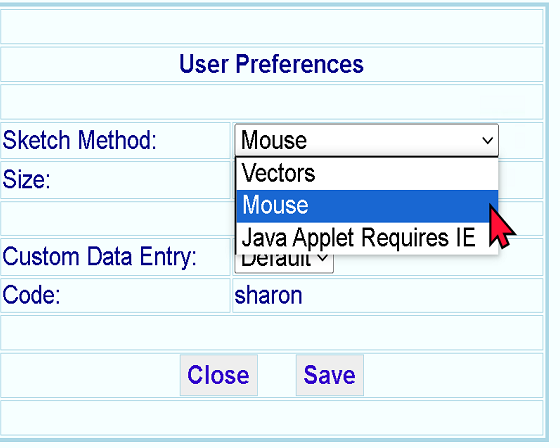

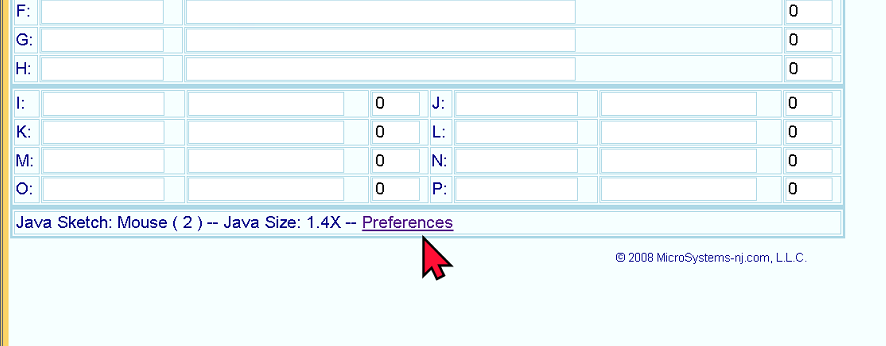

Click Preferences



Choose Mouse

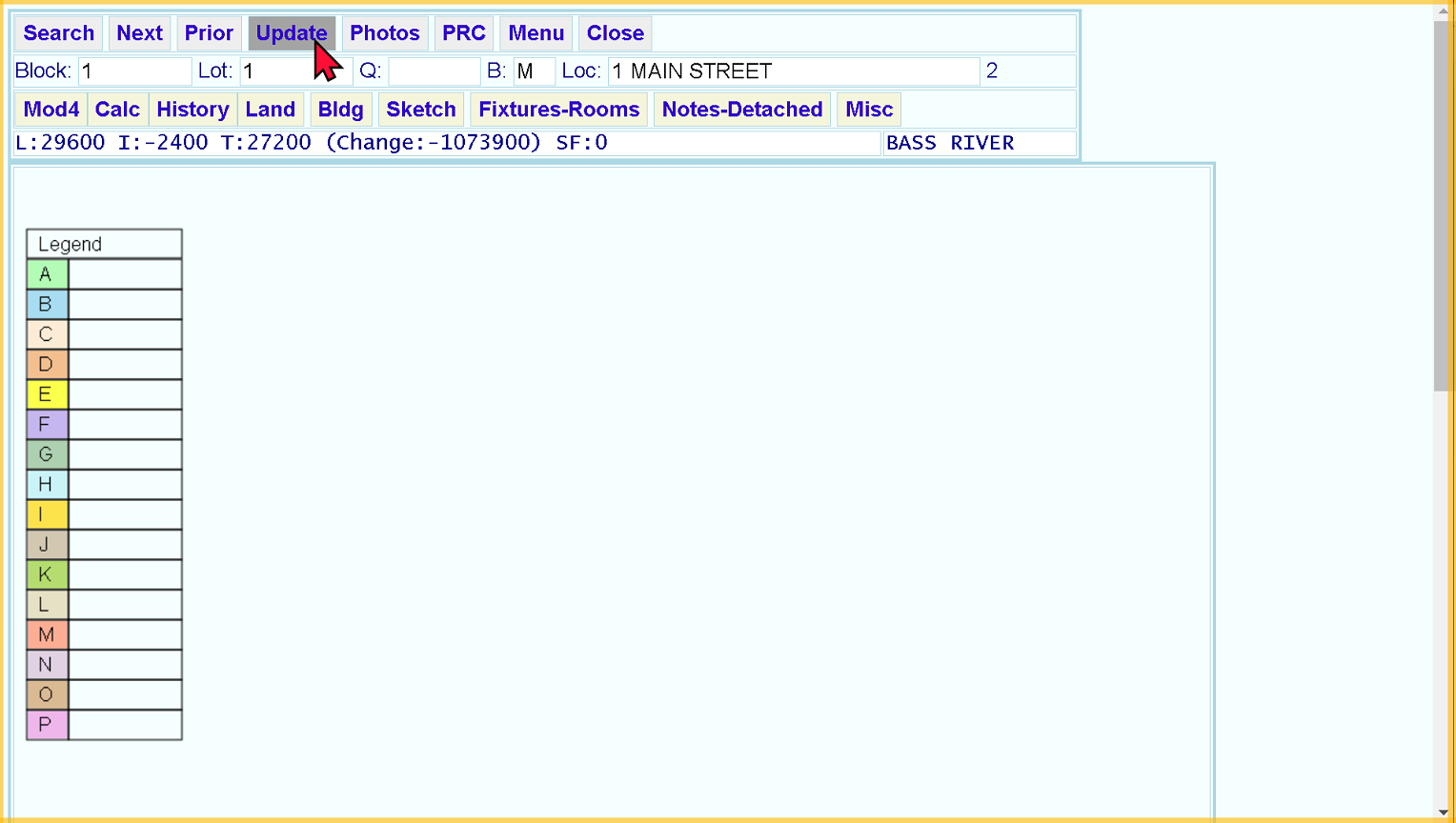

Click Update

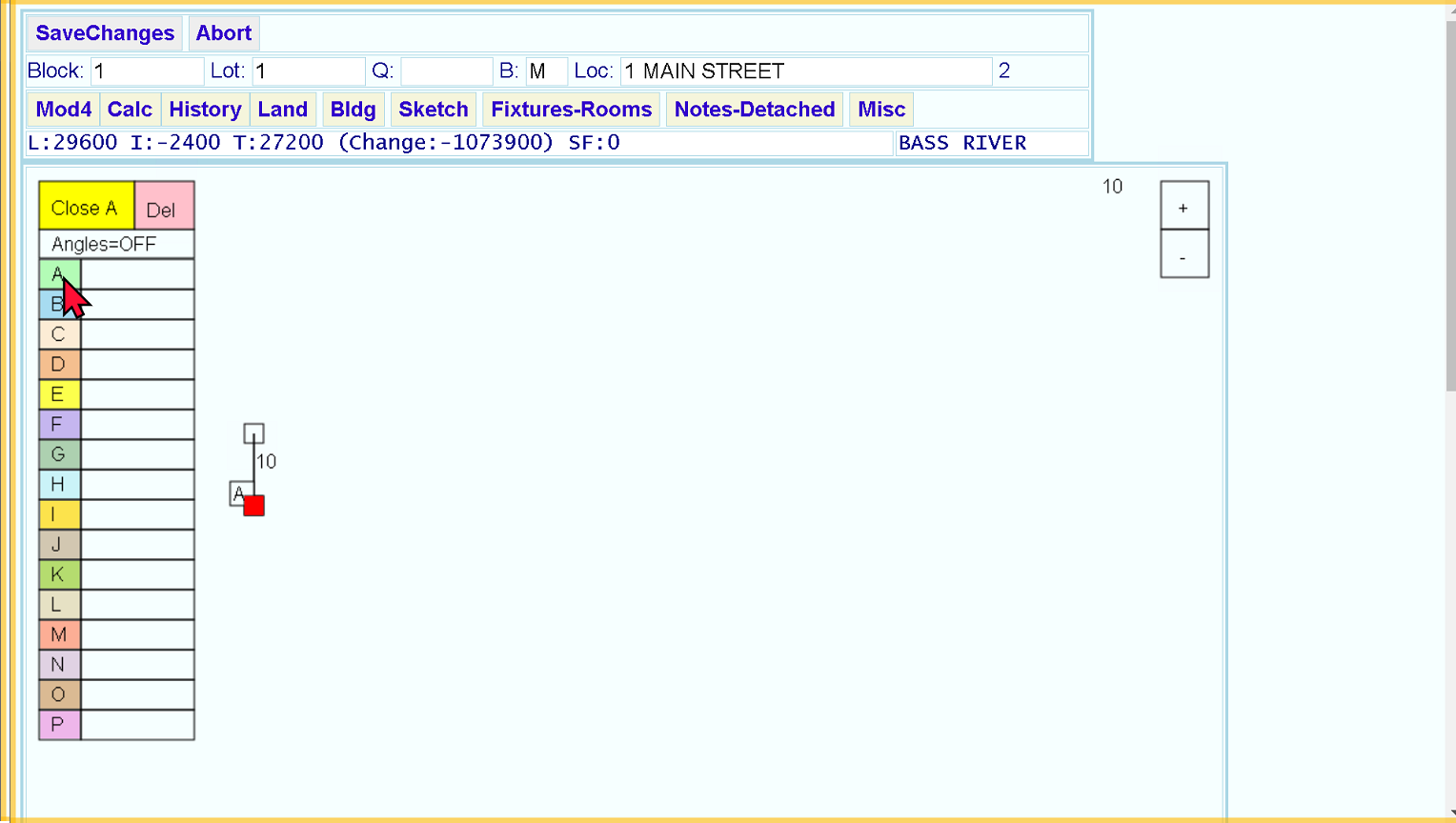

Click Section A: (Green Rectangle)

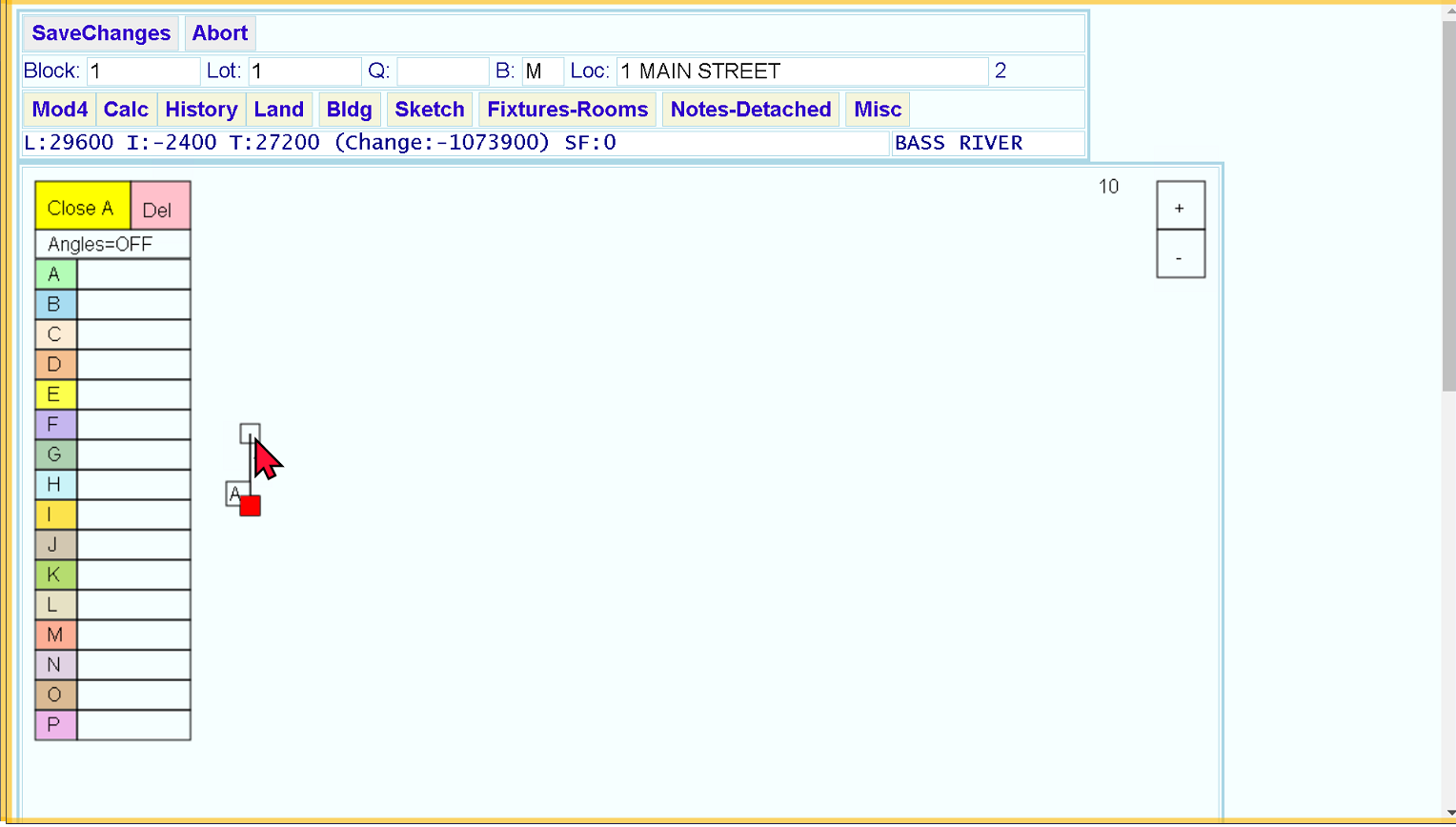

Click Open Square

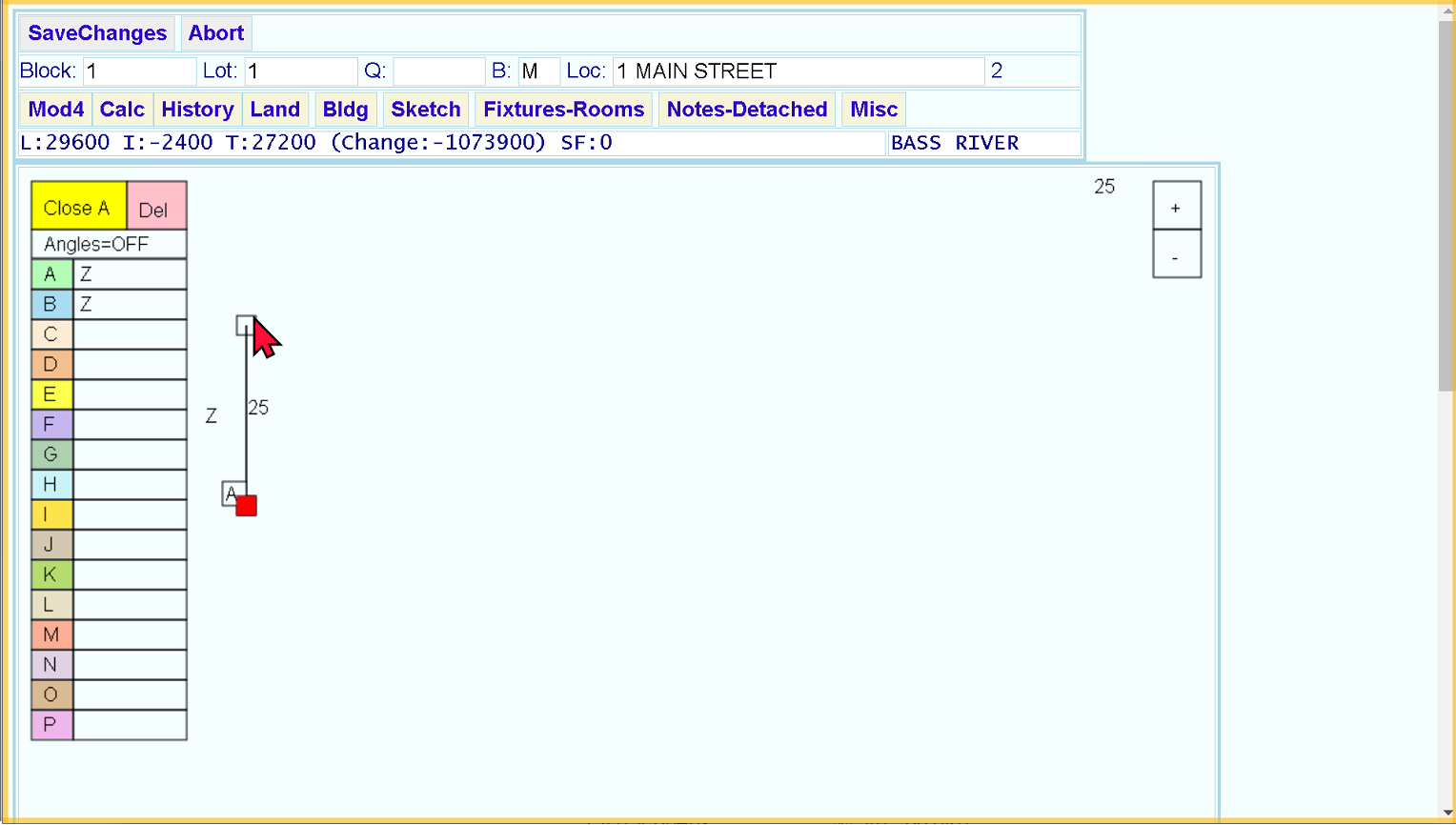

Drag Up

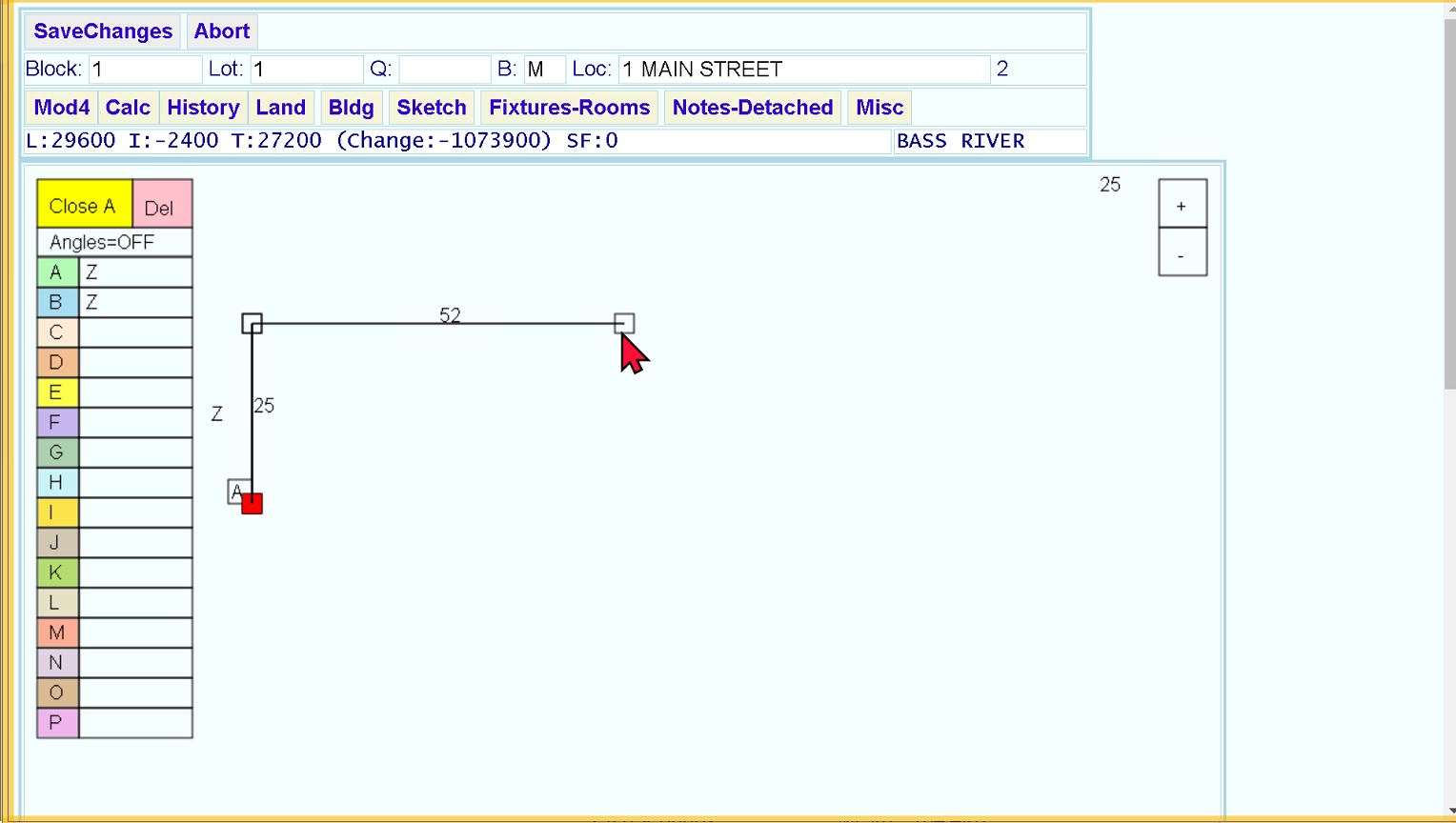

Click Approximate NEXT Corner

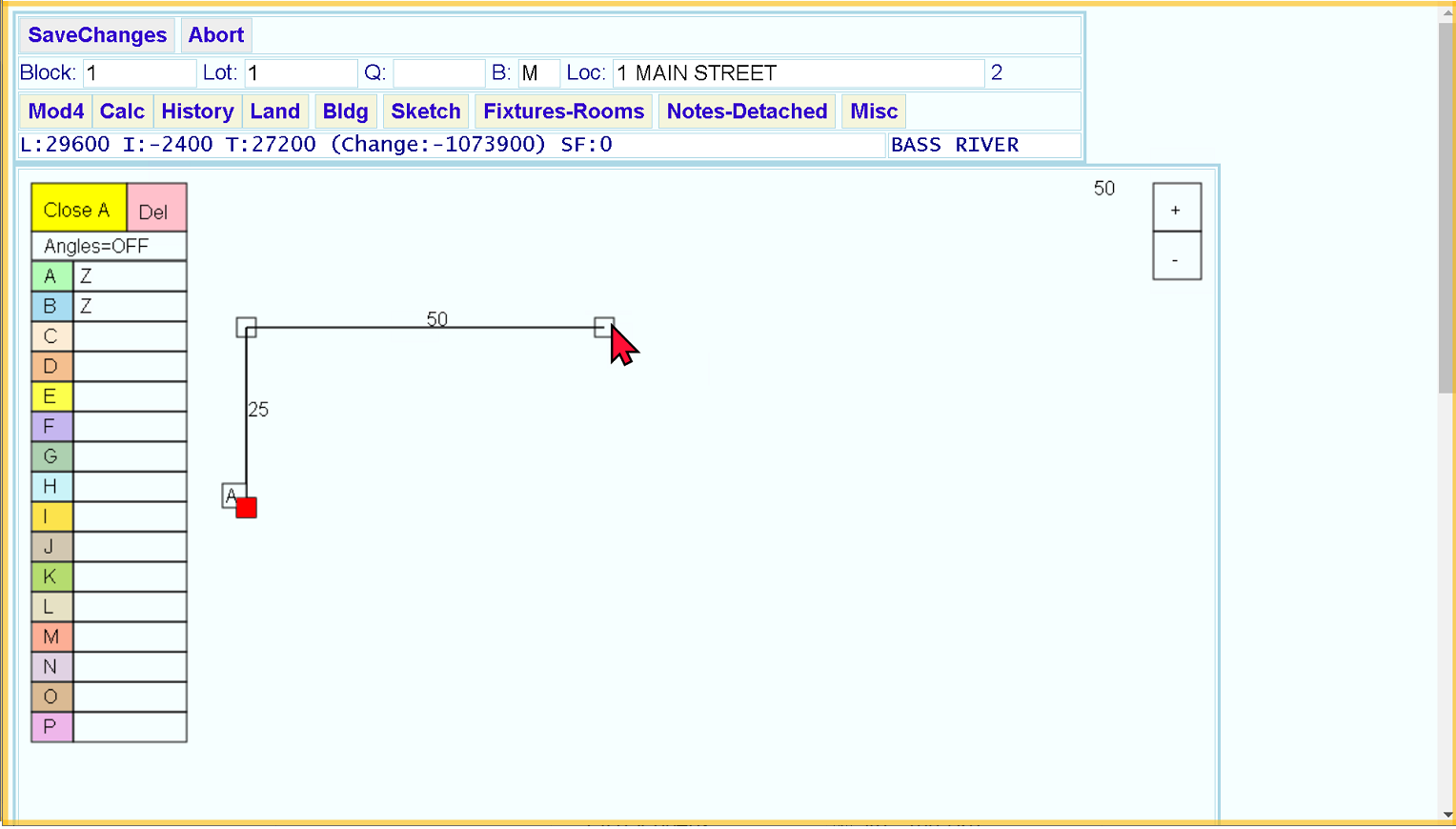

Drag To Size

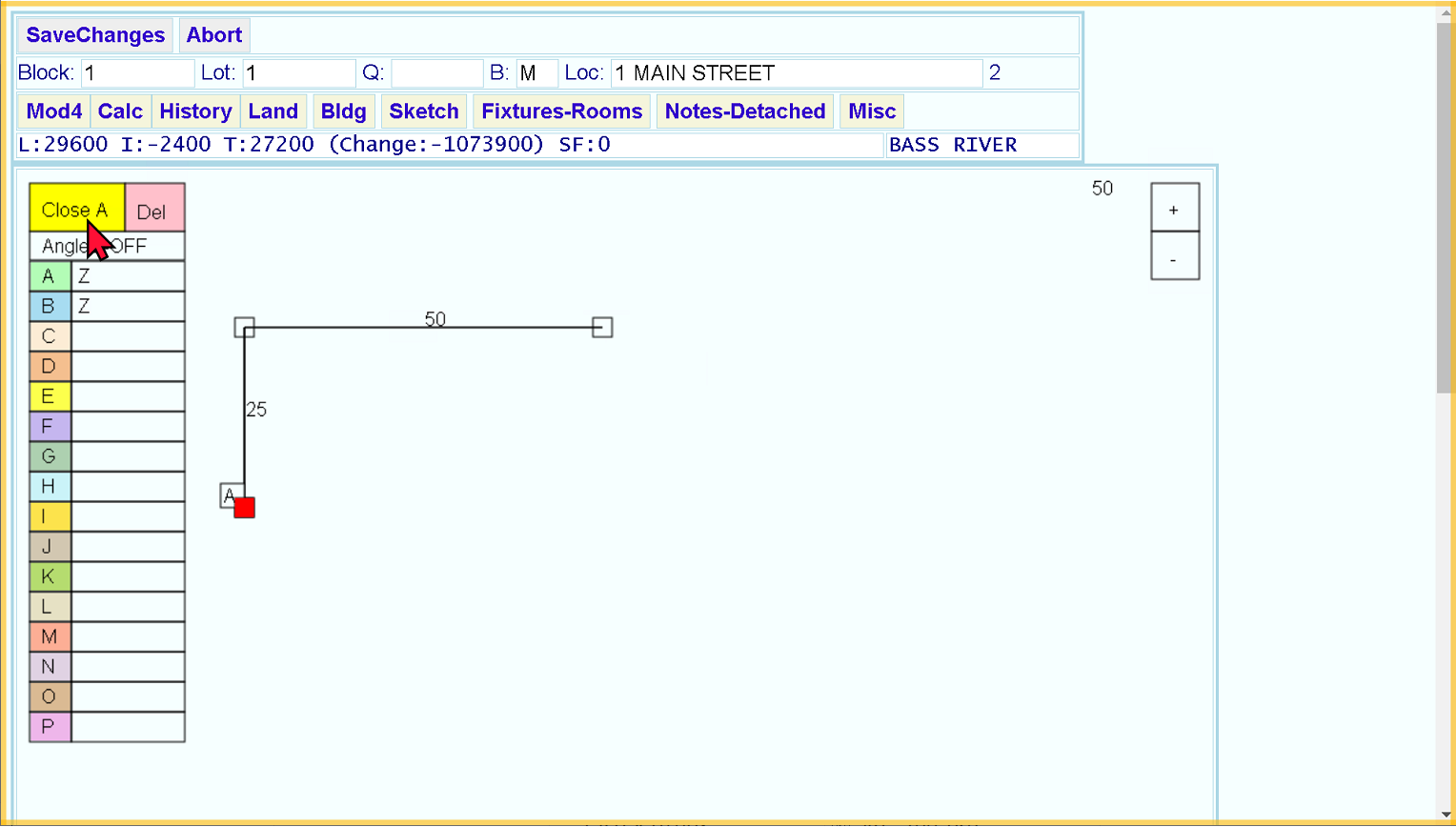

Click Close A

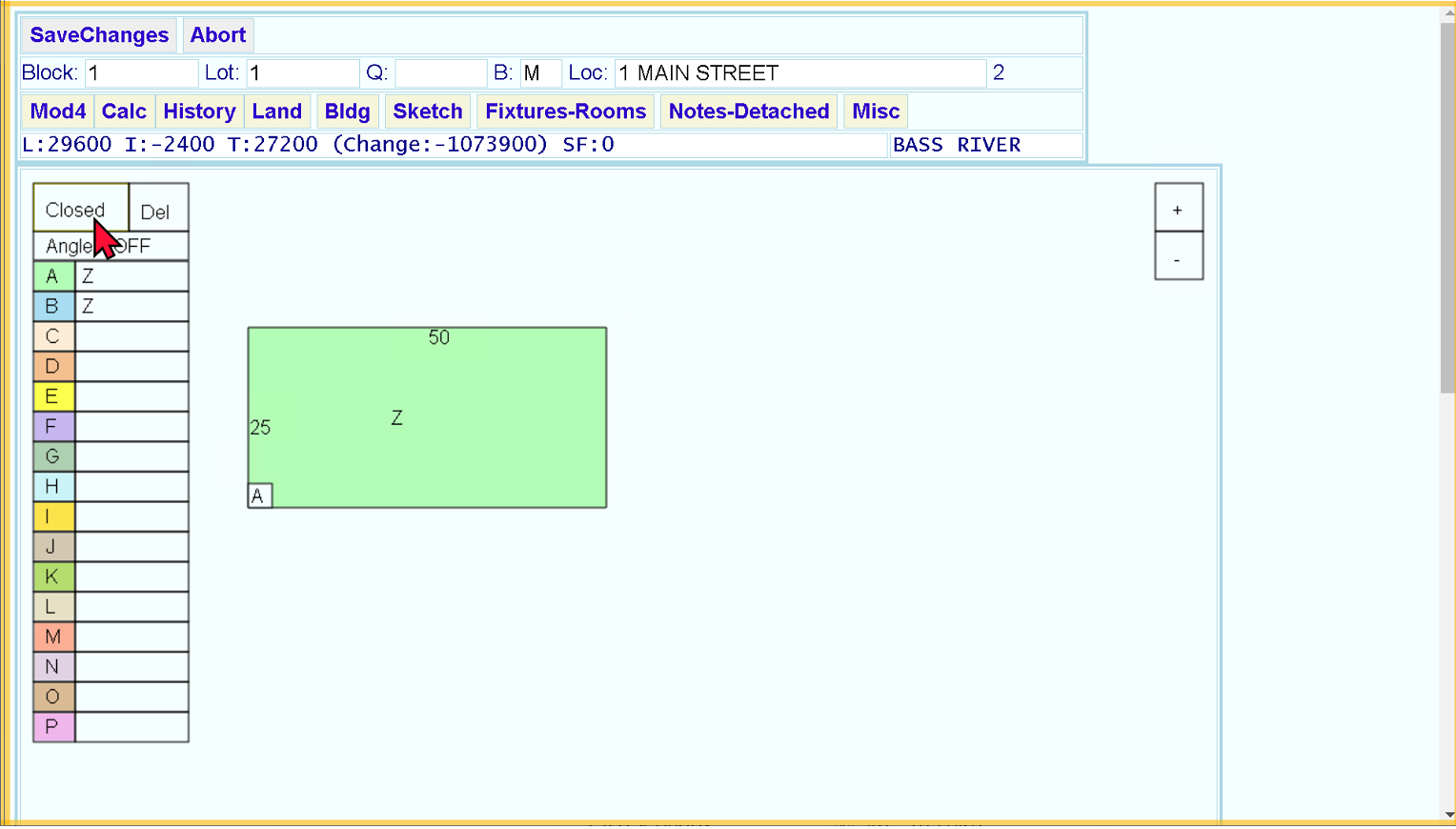

Only 2 Lines are Needed for Rectangles

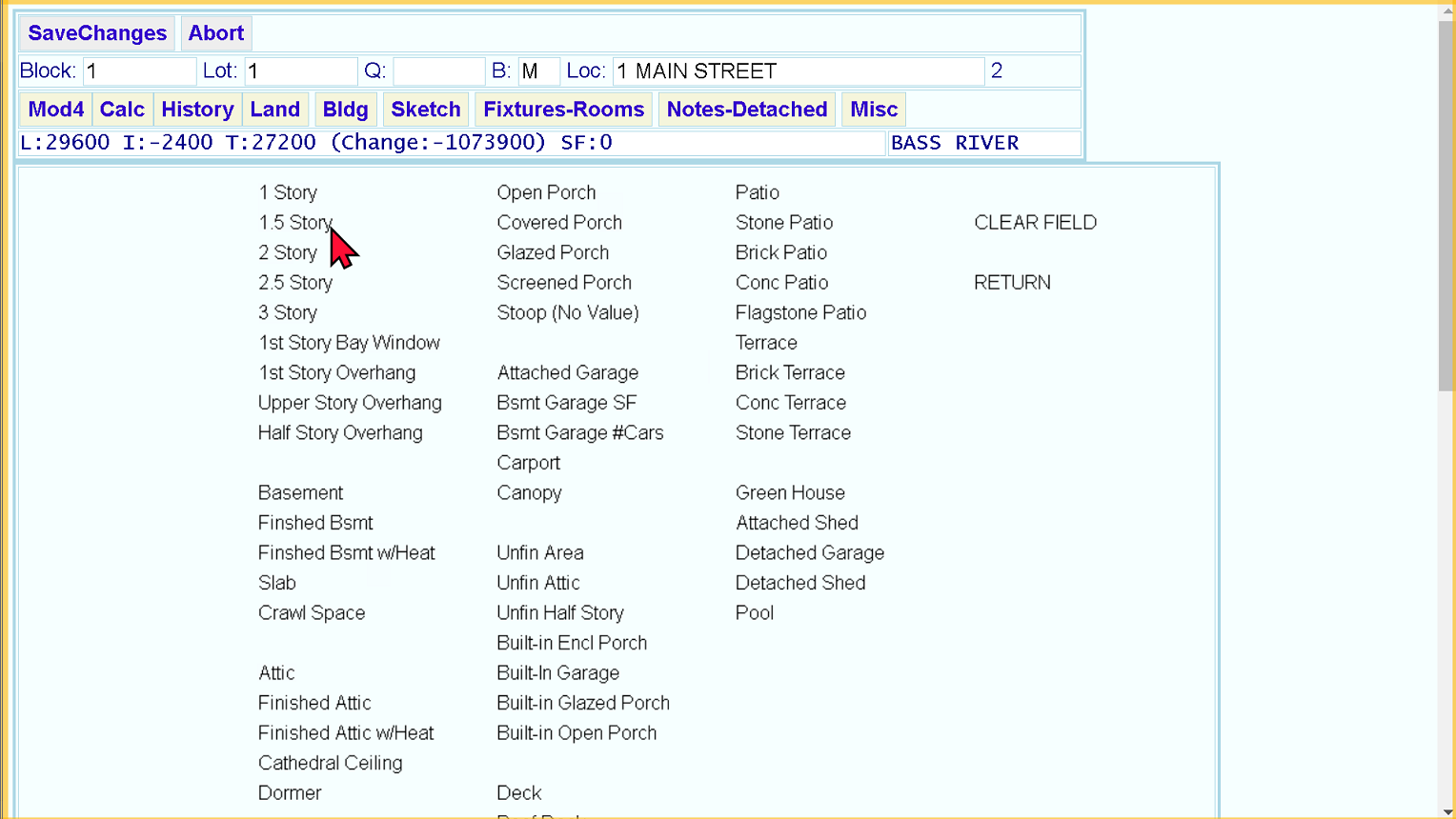

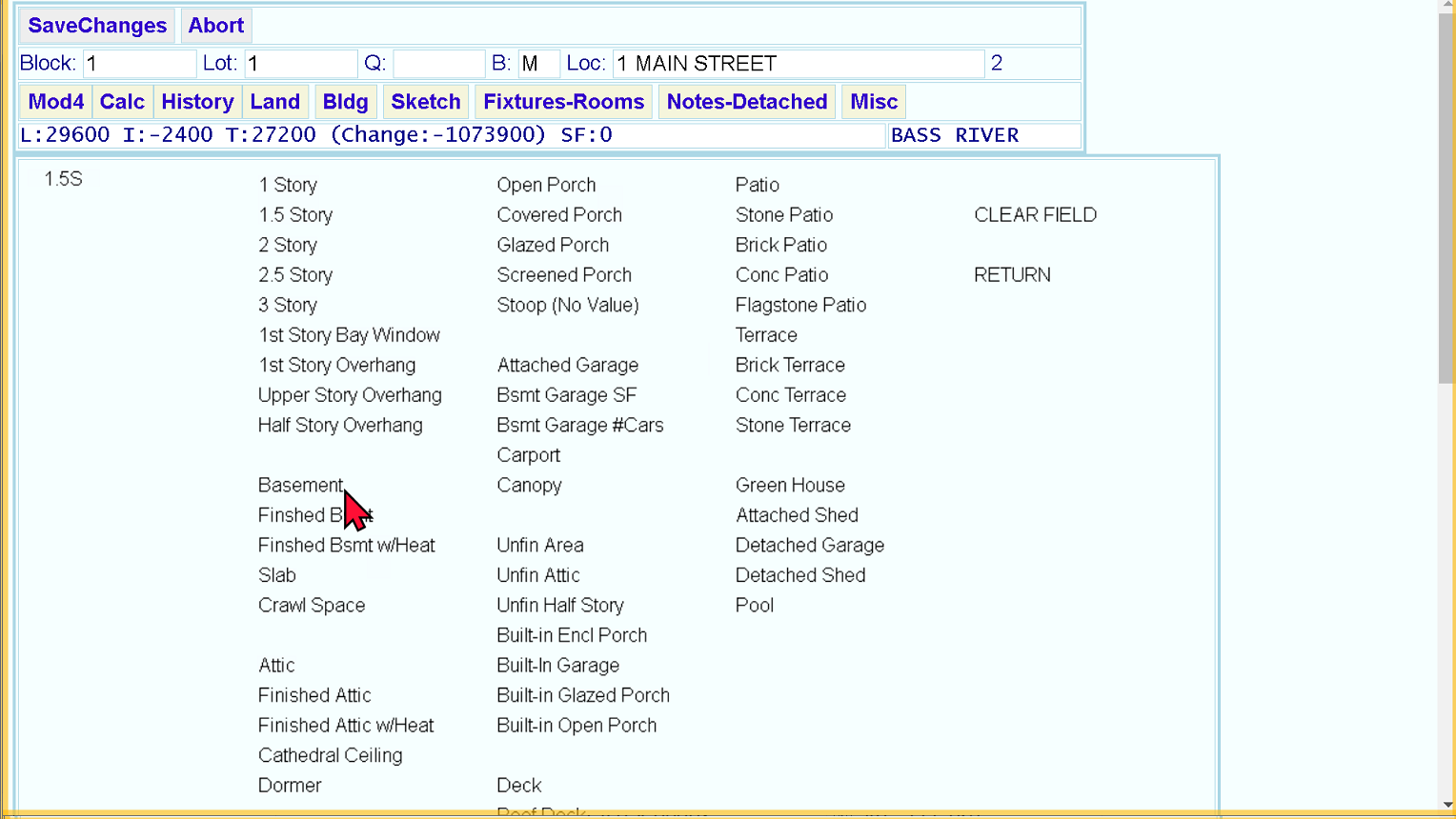

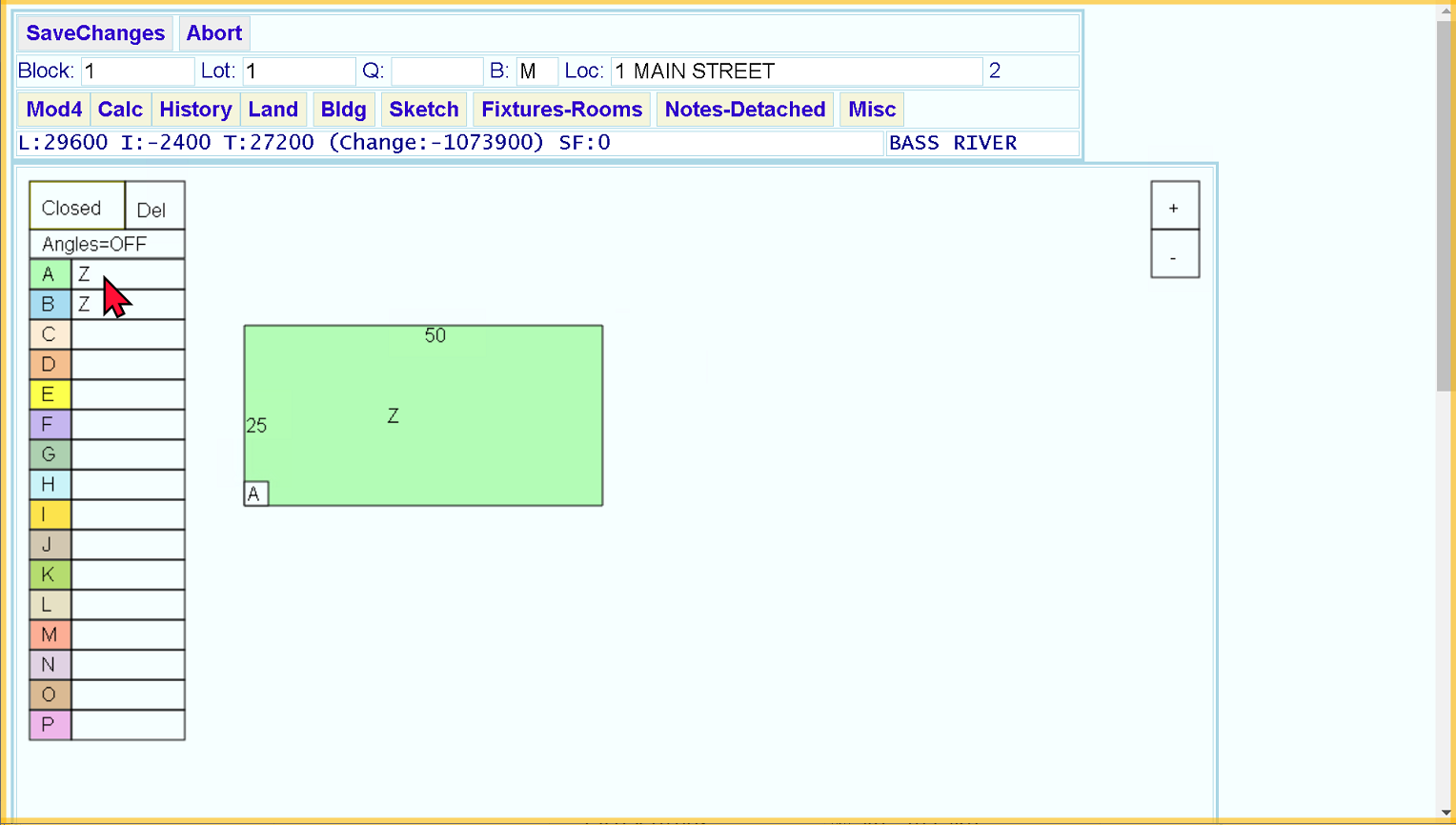

Click Description



Click Description



Click Description



Click Description

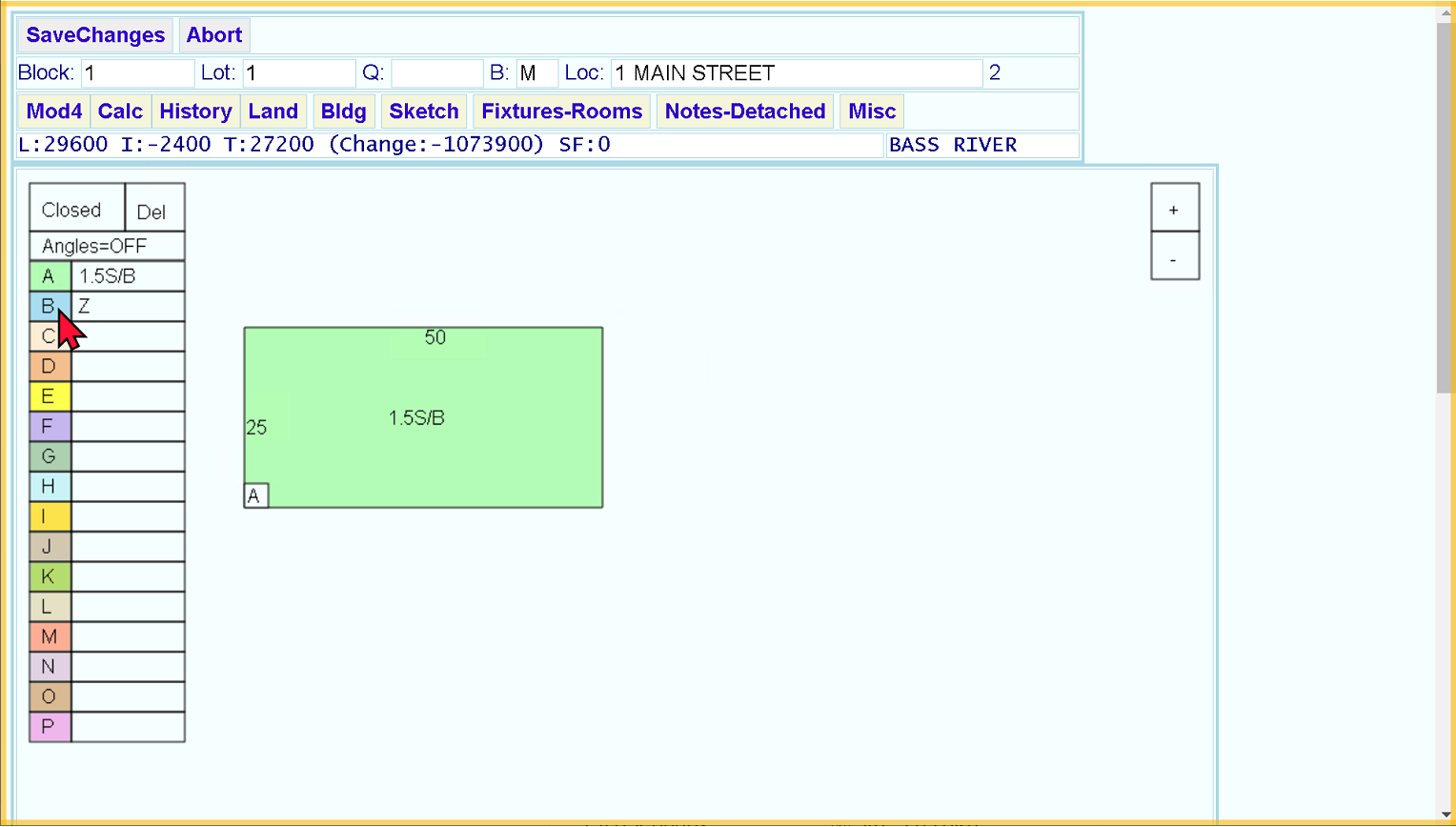

Click Section B: (blue rectangle)

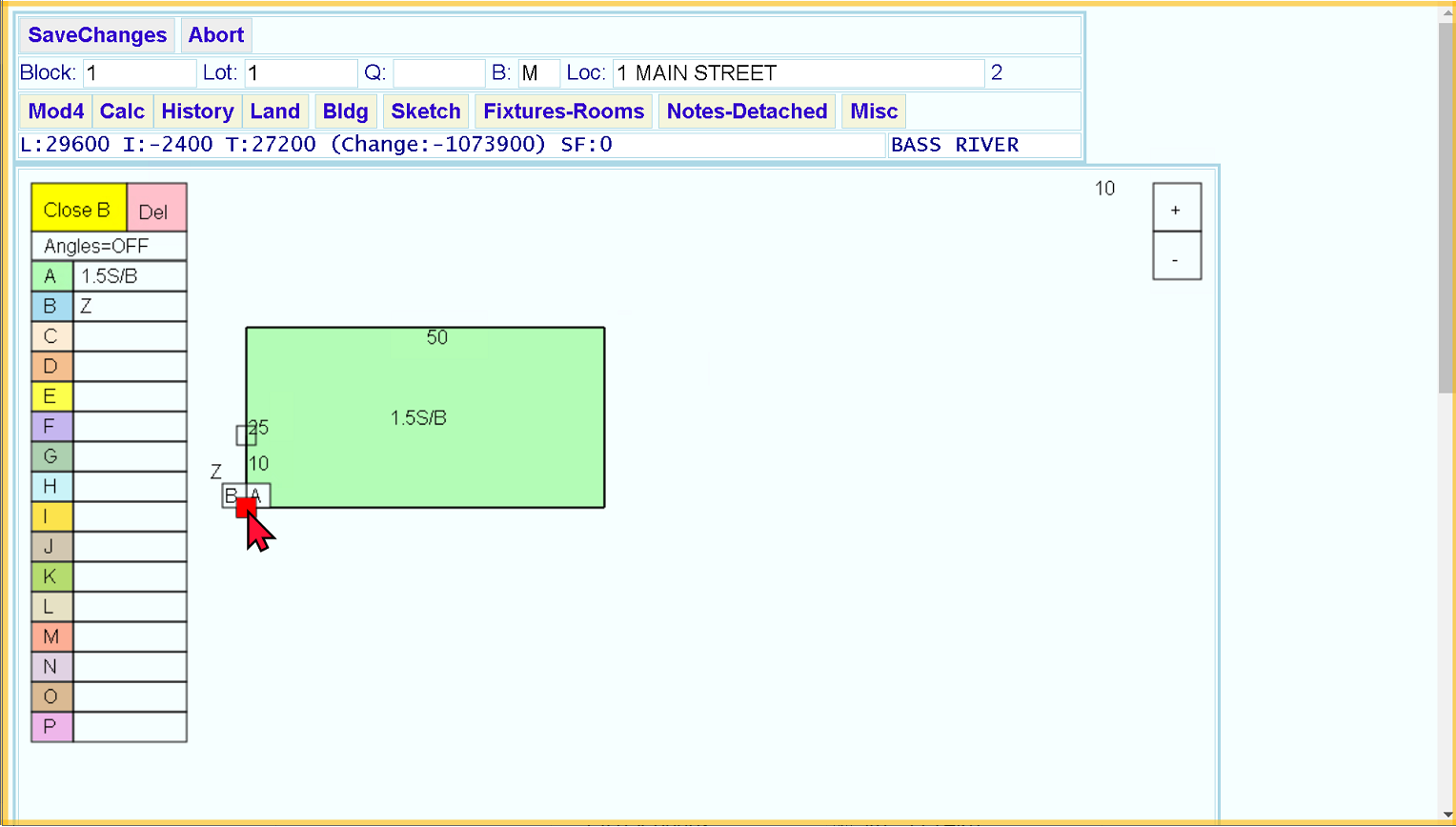

Drag Solid Red Square to Move

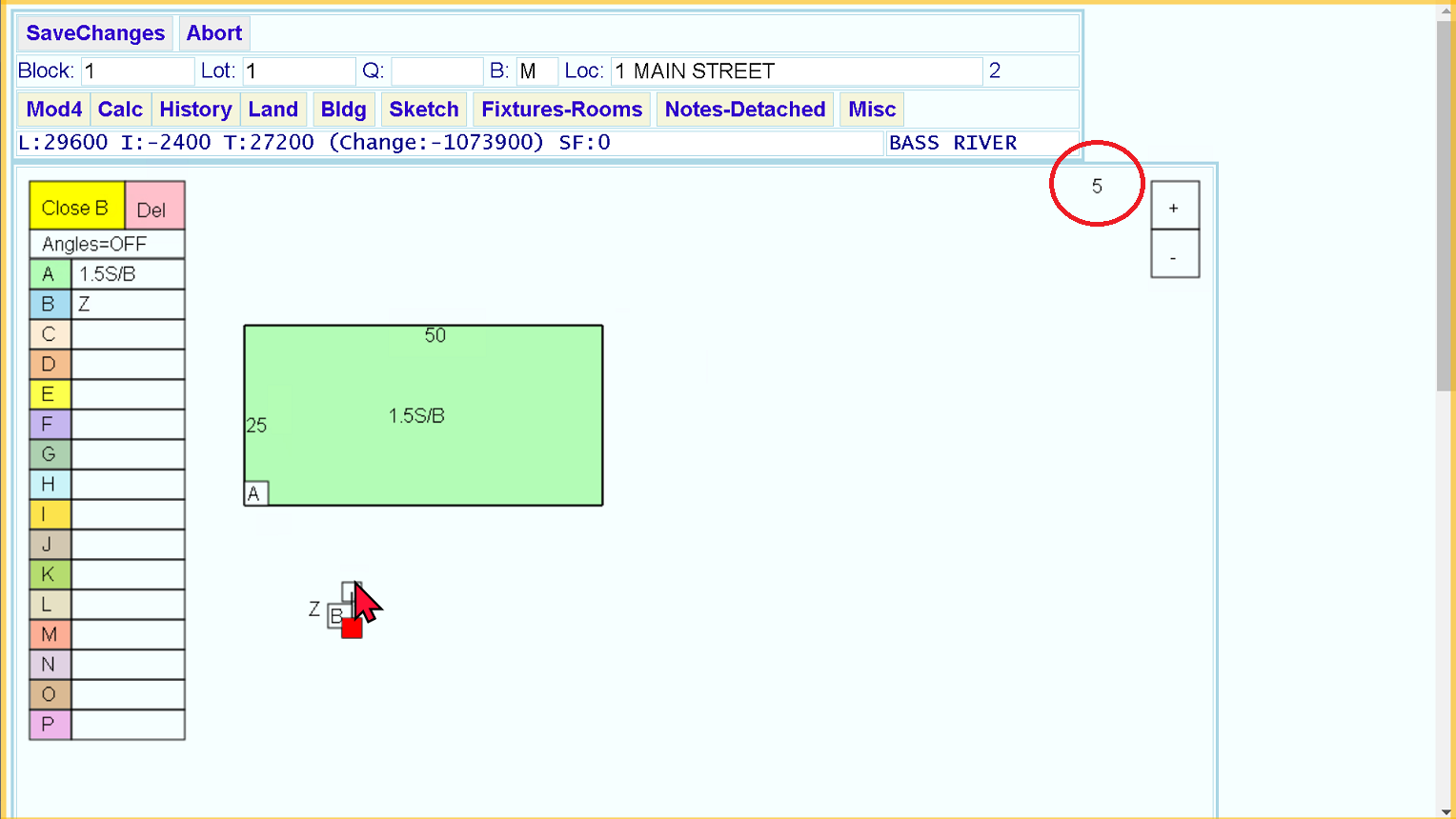

Drag to Size

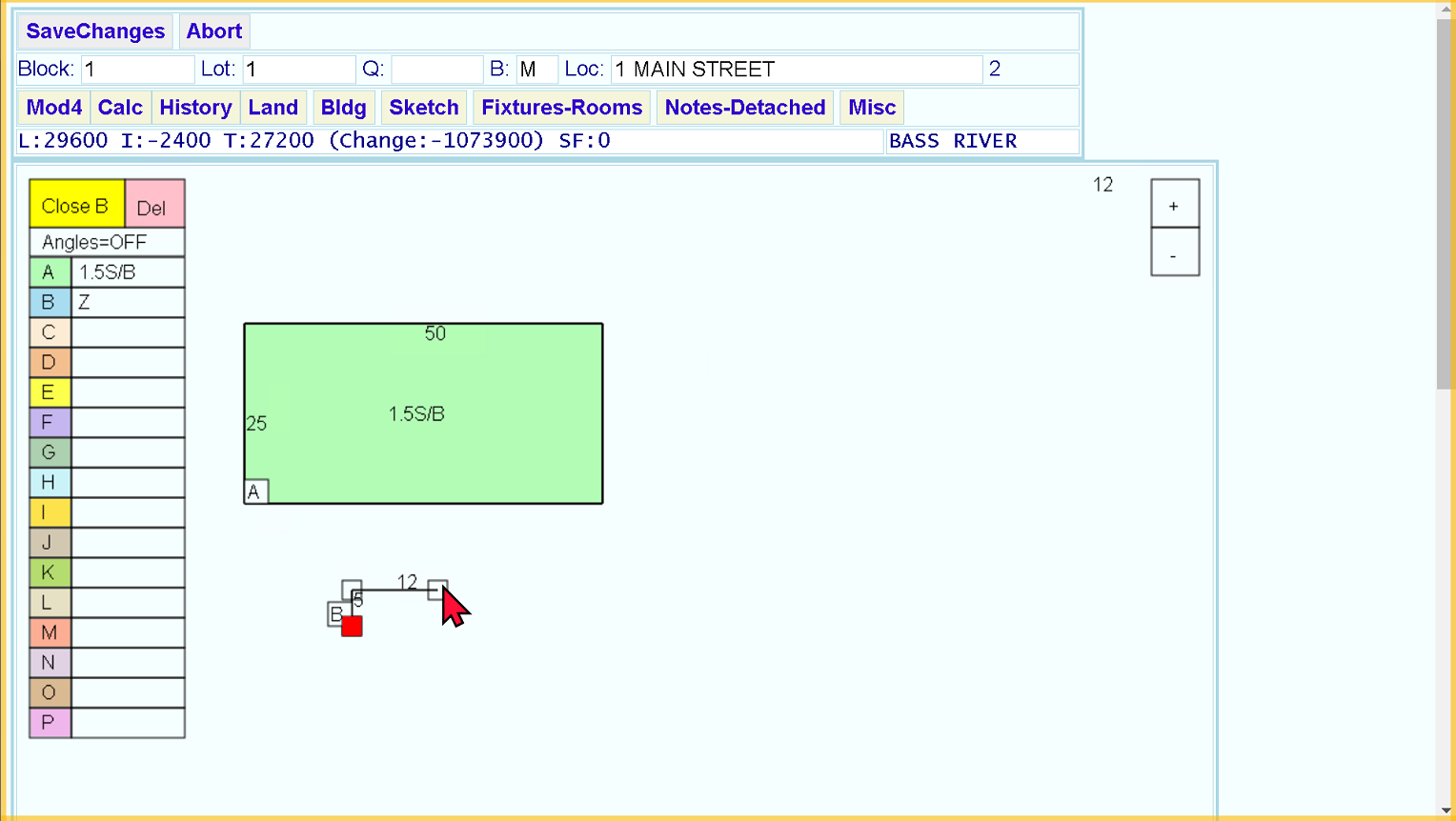

Only 2 Lines are Needed for Rectangles

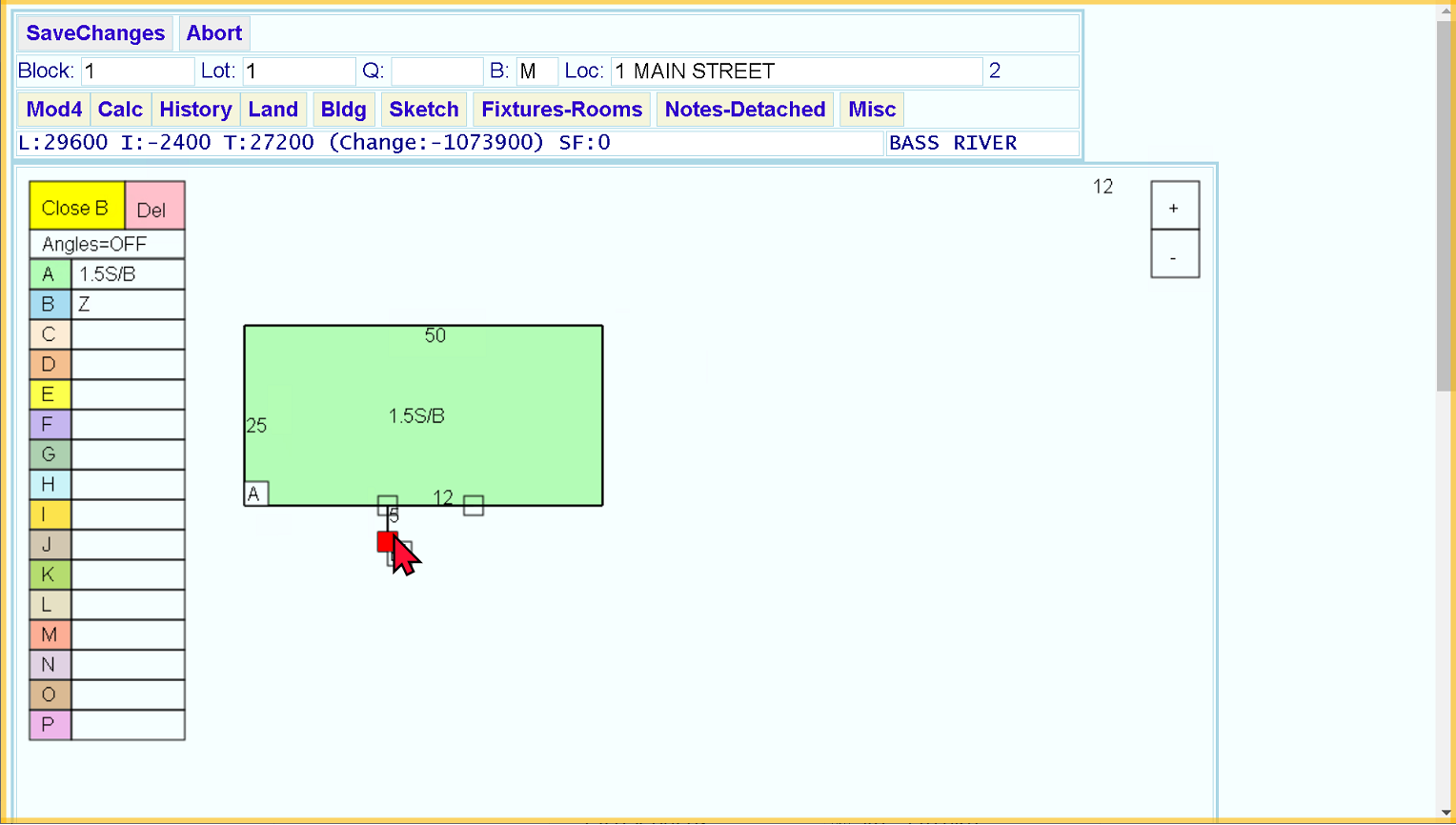

Drag to Location

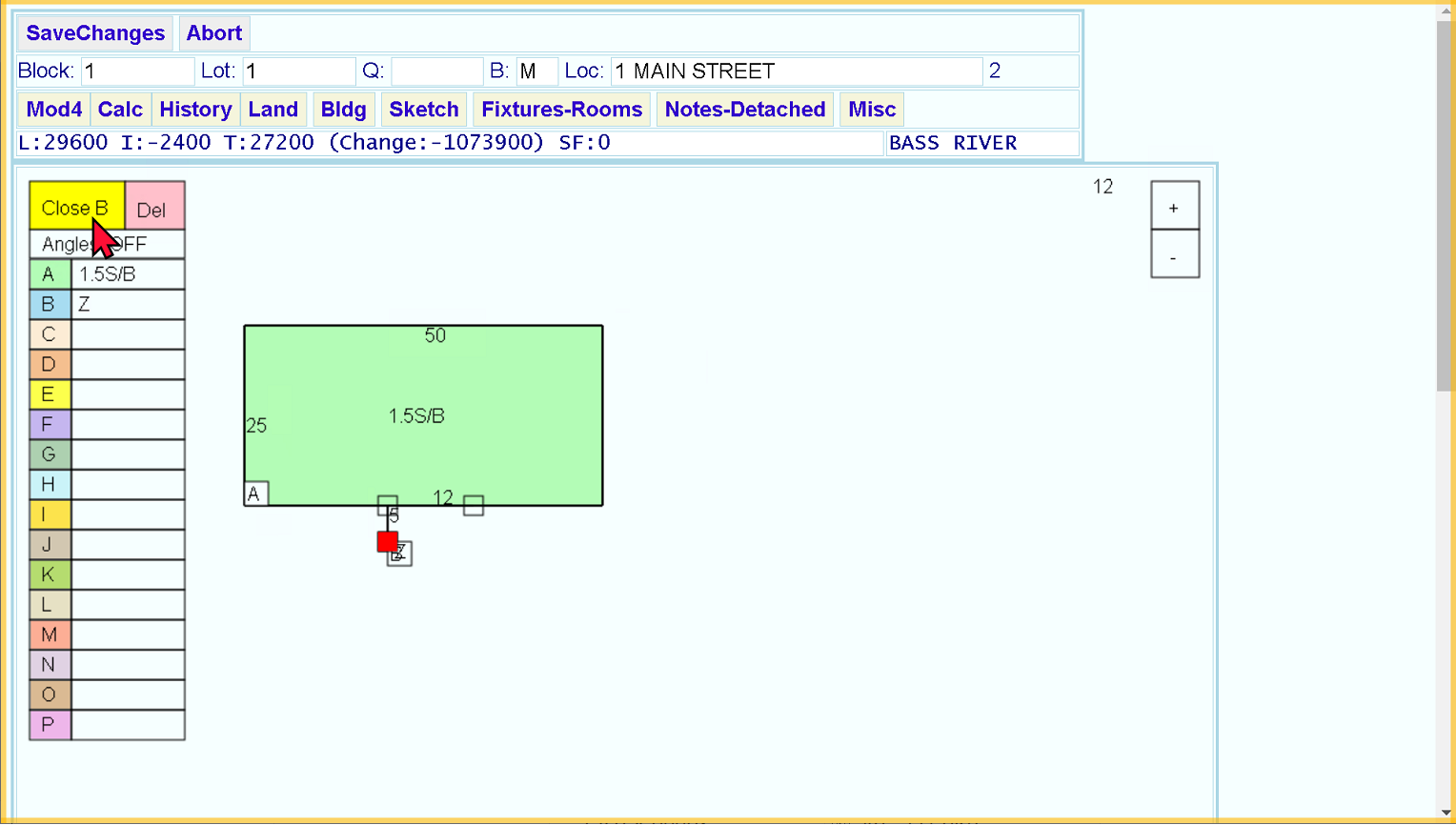

Close B

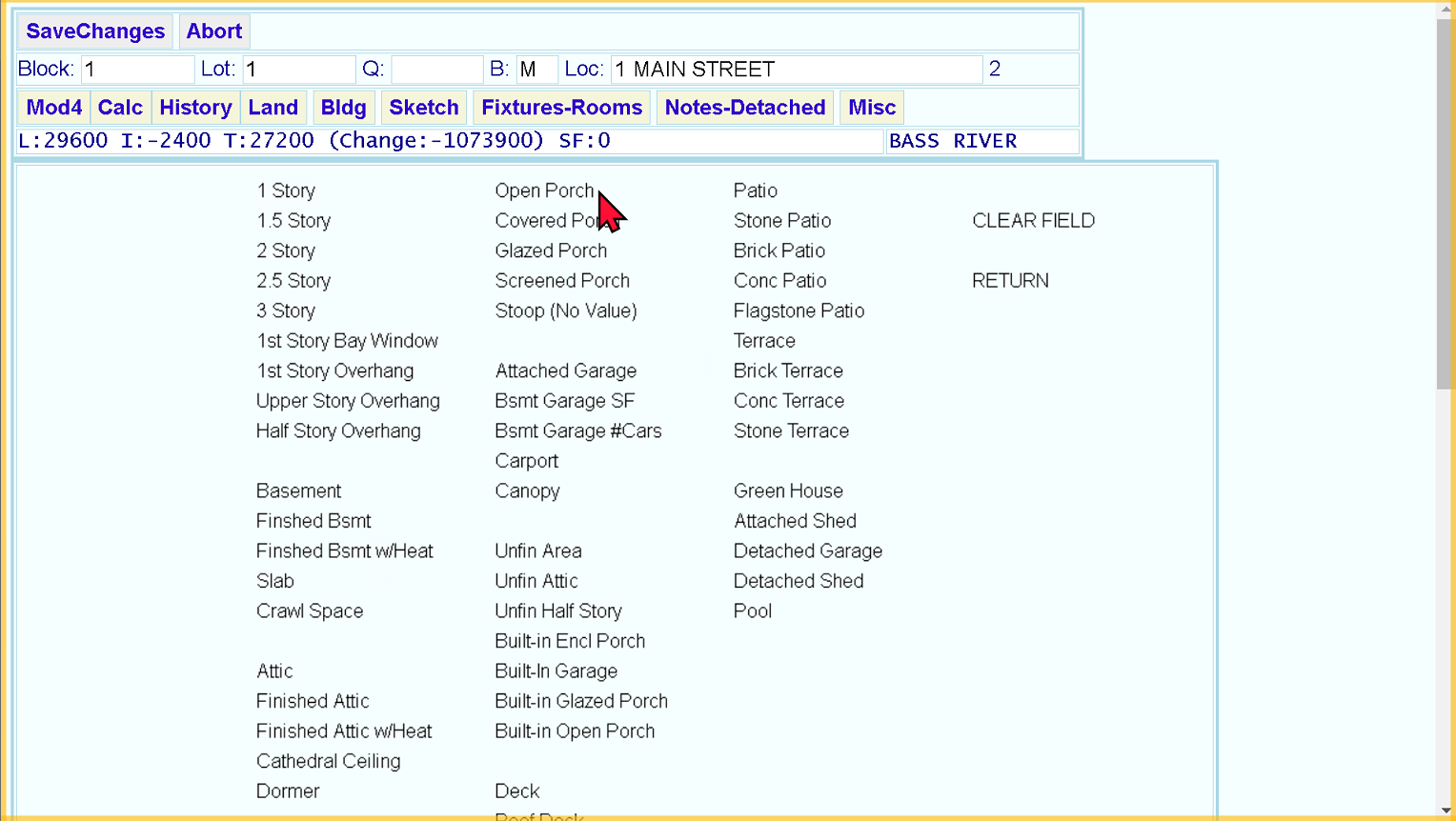

Click Description

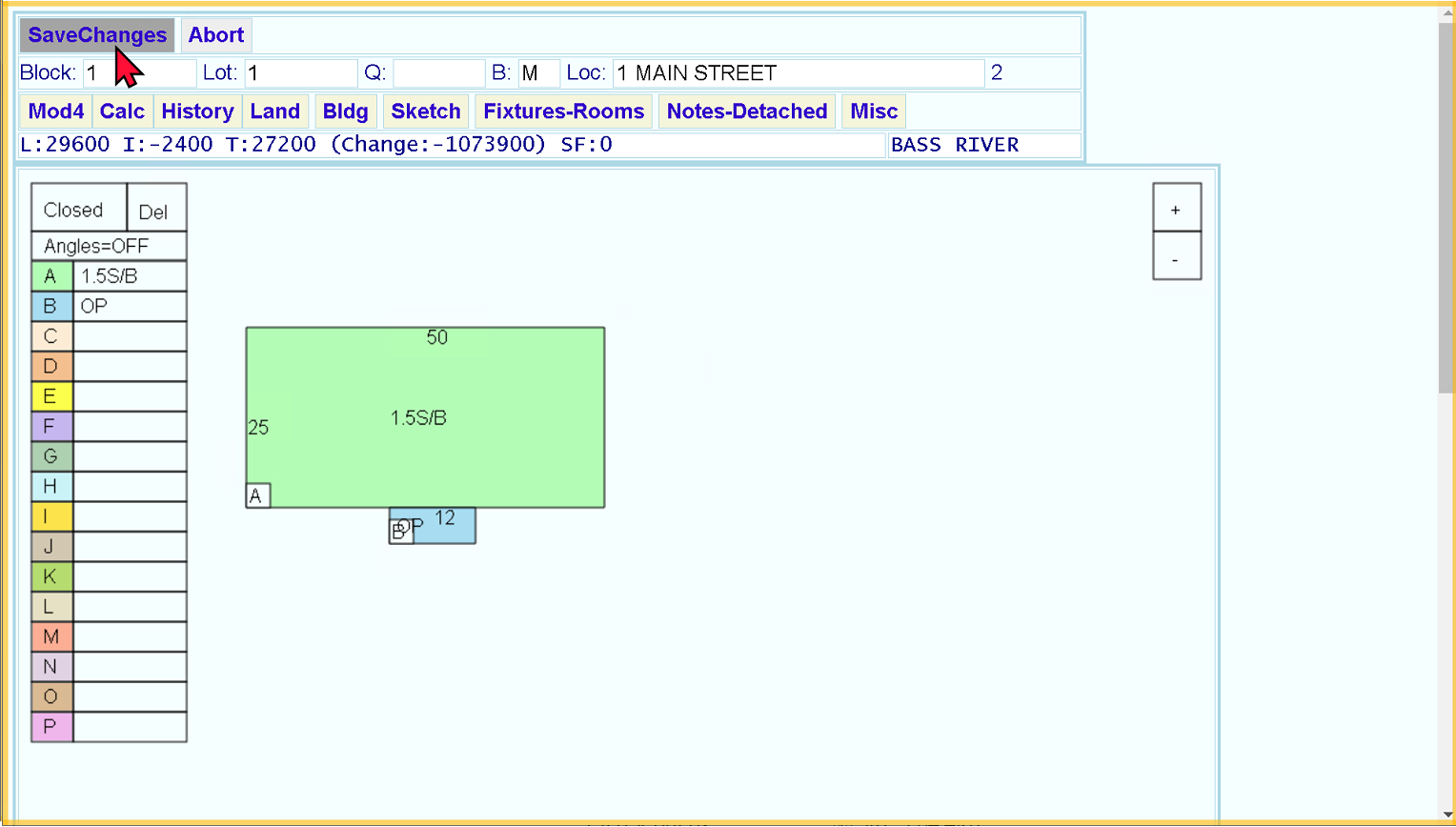

Click Save Changes



Save Frequently - Abort can be used to go back to the last save.
